Life Racing Gasoline Direct Injector (GDI) Driver

£1,100.00 (+VAT)

Life Racing’s Gasoline direct injector (GDI) driver is a compact unit capable of driving four fuel injectors at a high voltage, thus catering for the requirements of high-pressure solenoid injectors. The unit generates the complex waveforms required to activate the injectors. The injectors are switched on via pulses from the host ECU.

SKU: ANC-A02 Category: Tags: , ,

This Gasoline Direct Injector driver from Life Racing is available to drive all GD injectors including parts from Ford, GM and Bosch (including Bosch Motorsport types). Each module has 4 injector outputs with adjustable drive power.

All of this hardware is packaged within a lightweight CNC billet aluminium case. Designed to be installed in harsh Motorsport environments.

Specification:

Outputs

  • 4 Direct Injection Drivers

Inputs

  • 4 Injection Pulses
  • Power Supply:
  • 6V to 32V input range with revers polarity protection
  • High Voltage generated internally
  • Adjustable output drive power

Physical

  • Deutsch Autosport connector
  • CNC machined, O ring sealed, black anodised aluminium case
  • Maximum dimensions including connector are 140x80x37mm
  • Operating temperature -25 to 85°C
  • Total mass ~245g

Warranty and Servicing

  • This equipment comes with a 1 year warranty against manufacturing defects and failures however misuse or damage will not be covered under warranty.

Download Files

life_racing_gdi_driver_user_manual

Download GDI Data Sheet











Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

All ECU’s are configured to order so the lead times can vary. Estimated dispatch time within 10 working days.

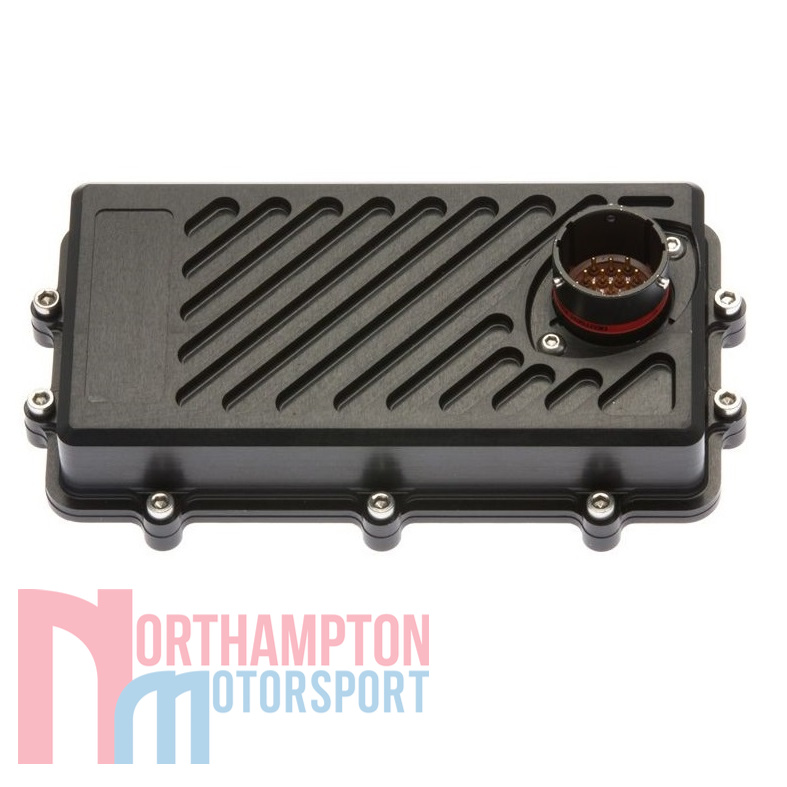

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
