Life Racing F90F Engine Management System

£7,165.00 (+VAT)

For advanced and challenging applications, the F90F has the highest pin count of any Life Racing ECU with up to 52 outputs and 72 inputs.

Due to the custom nature of the Life Racing F90F ECU, this listing is only for the base ECU only. After your purchase, we will contact you to discuss any additional upgrades (all of which are chargeable) and configuration changes which may or may not be required. For more information on ECU upgrades, please see the “Available Upgrade Features” toggle below.

The twin processor unit uses a high speed RISC processor for code execution and an additional large FPGA for high speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet remains easy to calibrate for the end user.

The F90F is designed to control complex engines including, turbocharged, supercharged, twin drive by wire, quad cam, quad vvt, vtec, gdi, gearbox, differential and many more! The unique crank and cam sync logger allow the flexibility of controlling the most awkward trigger patterns capable of running all current known patterns and even future OEM timing wheels.

All of this hardware is packaged within a lightweight CNC billet aluminium case with autosport connectors. Designed to be installed in harsh Motorsport environments.

Processing

  • Powerful RISC CPU for advanced strategy execution
  • Custom synchronous FPGA processor for engine position tracking up to 25,000rpm

Outputs

  • 52 user configurable general purpose pulse width modulated power outputs, including:
    • 12 ignition coil outputs IGBT or TTL (Software configurable)
    • 24 fuel injector outputs
    • 8 general PWM outputs or 8 analogue inputs (Software configurable)
    • 4 full bridges also configurable as 8 half bridges or 8 PWMs

Inputs

  • 64 general purpose analogue sensor inputs, including up to 20 bipolar, inductive or hall effect speed / engine position inputs
  • 8 dedicated inputs, including:
  • 4 acoustic knock sensor inputs†
  • 2 wideband (NTK) lambda sensor interfaces
  • 2 K-type thermocouple sensor interfaces

Interfaces

  • 100 MHz full duplex Ethernet for calibration, configuration and data download
  • 3 CAN 2.0B interfaces for communication with other controllers or logging systems
  • RS232 serial interface for communication with other controllers or logging systems

Memory

  • 128MB battery backed internal logging memory
  • Ultra fast data download via Ethernet
  • Time/Date stamped data via real time clock

Power Supply

  • 6 to 32V input voltage range with reverse polarity protection
  • 4 regulated 5V sensor supply output with individual short circuit protection
  • Software configurable (5 to 12V) sensor supply output (eg for 10V load cells)
  • 7 Separately protected sensor and communication ground inputs

Physical

  • 4 Deutsch Autosport connectors with a total of 191 pins
  • CNC machined, ‘O’ ring sealed, anodised aluminium case
  • Maximum dimensions including the connectors are 197 x 182 x 44 mm
  • Operating temperature up to +85°C
  • Sealed to IP67
  • Total mass is ~1250 grams

Available Upgrade Features

  • Adaptive Knock Control
  • Diesel Control
  • Direct Injection Pump Control*
  • Direct Motor Control
  • Gearbox Control
  • Traction Control
  • Custom Security

All of the additional upgrade features for the Life Racing F88 ECU are available after your purchase for an additional charge.

*Please note, for Direct Injection Pump Control, Life Racing’s Gasoline Direct Injector (GDI) driver is required to power GD injectors which is available separately.

Download Files

life_racing_f90f_ecu_datesheet_northamton_motorsport

Download F90F Data Sheet











Here at Northampton Motorsport, we also offer a full wiring and fitting service as well as engine calibration on our in house Superflow AD30 2 wheel drive chassis dyno. For more information, please contact us and a member of our team would be happy to assist with your enquiry:

Contact Us

All ECU’s are configured to order so the lead times can vary. Estimated dispatch time within 10 working days.

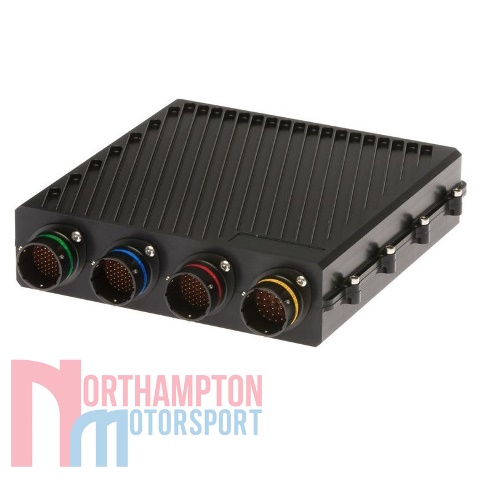

Picture for illustration purposes only. Actual parts may differ slightly in appearance.
