Description

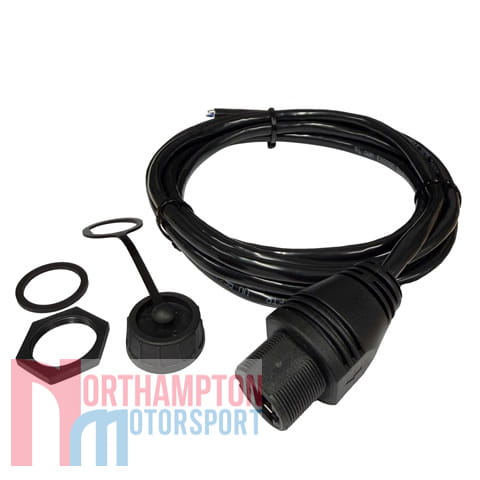

RJ45 Comms Adaptor suitable for use with Life Racing Engine Management Systems.
This adaptor allows the connection to the cars comms using a RJ45 lead. It’s ideal for wiring harnesses that do not require a bulk head connector. This Life Racing RJ45 Comms adaptor is 2 meters long and has a IP 67 rating and can be used in the harshest of Motorsport environments. For more information, please see the technical data below:
Life Racing RJ45 Comms Adaptor:
Physical
- Panel Housing: PA66
- RJ45 Receptacle Housing: PBT
- RJ45 Receptacle Contacts: Copper Alloy‚ Au Plating
- RJ45 Receptacle Shell: Copper Alloy‚ Ni Plating
- EMI Plate: Copper Alloy‚ Ni Plating
- Panel Gasket: Silicone
- Panel Hex Nut: PA66
- Glue: Epoxy
- Inner Moulding: PE
- Over Moulding: PVC
Technical Data
- Insulation Resistance: DC500V±10%‚ test for 1 minute and the insulation resistance should be more than 100MΩ
- Dielectric Withstanding: Voltage 1000 V DC/AC peak‚ contact-to-contact‚ for 1 minute. 1500 V DC/AC peak‚ contact-to-test panel or contact-to-shield for 1 minute.
- Contact Resistance: 20mΩ at 10mA Max.
- Durability: Speed: 10 mm/s maximum. Rest: 1 s minimum (mated and unmated). Artificially 750 cycle ‚The transfer rate meet Cat 5e Mechanism 750 cycle ‚ The transfer rate meet Cat 5e
- Thermal Shock: 5 cycles at -40° / +105°‚after the test‚ the function and appearance can’t be impacted.
- Waterproof Test: Submersion in water 1 meter for 30 minutes.
Technical Drawing
RJ45 Comms Adaptor Technical Drawing
