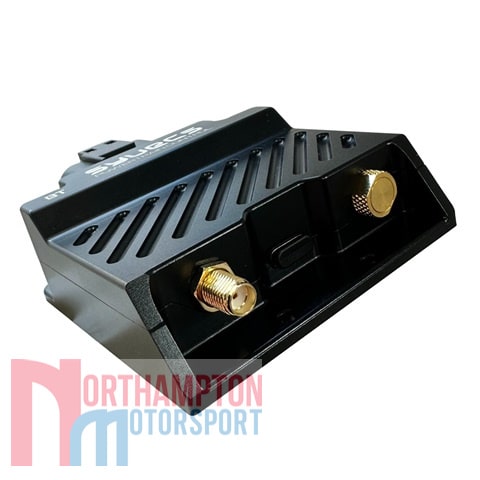

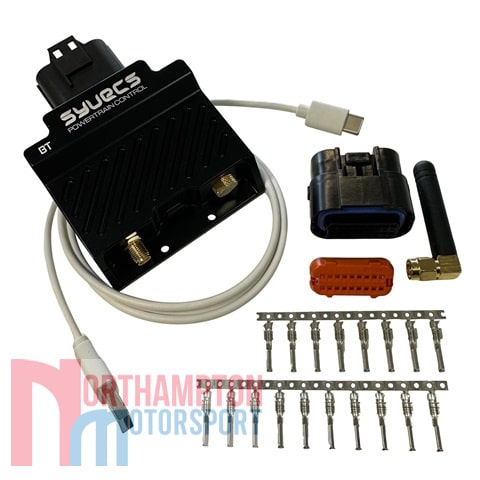

Syvecs BTIMU Module

• Supports importing any CAN DBC file
• Instantly compatible with major ECU systems (Syvecs, MoTeC, Pectel, Link, etc.)

• Read & clear DTCs (Diagnostic Trouble Codes) from any OBD-II–equipped vehicle
• Real-time data monitoring via standard OBD-II PIDs up to 200hz update rate depending on car CAN type.

• Preloaded configurations for vehicles (e.g., Nissan R35)
• Simplifies CAN bus mapping for commonly used models

• Transmit custom messages or “modes” back to the ECU
• Flexibility to emulate sensors or inject control commands

• Enables wireless pairing with:
  • Smartphones & tablets (iOS & Android)
  • In-dash head units (via BLE-capable interfaces)

Download the Apps here:

• • App Store (Apple iOS)
  • Android (Google Play Store)

• Multiple dashboard templates (all fully configurable)
• Any data point can be displayed (e.g., RPM, temperatures, pressures, GPS speed)

• Define thresholds on any CAN or internal sensor value
• Receive visual/audible alerts when limits are exceeded (e.g., oil pressure low, over-rev)

If a Syvecs 100hz GPS Module is already fitted with a Syvecs ECU then the following is possible, if not a Syvecs GPSBT is needed for below

• Calculate 0–100 km/h, 100–200 km/h, ¼ mile times in real time
• Drag Tree option to see reaction times also
• Store best-run, quickest segment, and lap data

If a Syvecs 100hz GPS Module is already fitted with a Syvecs ECU then the following is possible, if not a Syvecs GPSBT is needed for below

• GPS-based auto‐track detection: draws the circuit as you drive
• Automatic sector creation and timing: see best lap, sector times, etc.
• Ideal for racers who want immediate feedback without manual track setup

• Stream video from your mobile device’s camera while driving
• Overlay CAN & GPS data onto recorded footage (e.g., speed, G-forces, RPM)
• Export annotated videos for analysis or sharing on social media

• Log any CAN-bus channels or internal IMU data to your mobile device’s storage
• Export CSV or native Syvecs Sview formats for post‐session analysis on a PC

• Remotely set up module’s digital Inputs/Outputs via the app
• Define input functions (e.g., lap-trigger switch, shift-light input)
• Define output behaviours (e.g., activate a warning light, control a relay)
• No need for a separate PC‐based configuration tool; everything happens in Syvecs Dash

• Available on both Apple iOS and Android
• Seamless updates via App Store or Google Play Store

• Outputs:
  • 4 x PWM Outputs – 2Amp Peak (100ms) / 1Amp Continuous
  • 1 x 5V Sensor Supply (400ma Max)
• Inputs:
  • 2 x Analogue (0-5V)
  • 2 x Thermistor (0-5V)
• Interfaces:
  • 1 x CAN 2.0B, user programmable
  • 1 x CANFD, user programmable
  • 1 x BLE (Bluetooth Low Energy) connectivity for wireless data exchange
  • USB C For Updates and Configuration
• Power Supply:
  • 6 to 26V ignition switched supply
• Physical:
  • 70 x 90 x 25 (mm)
• Environmental:
  • High-quality anodised CNC aluminium body with waterproofing
